DC fast-charging puts a lot of stress on one small place inside every plug: the pin-to-wire joint. That interface has to carry high currents, withstand vibration, resist moisture and salt, and do it all inside a compact housing. Potting—also called encapsulation—fills and seals this joint with a specialized resin so it is isolated from air and mechanically stabilized. Done right, the joint lasts longer, holds its insulation margins, and runs steadier under the same load.

What potting does

Potting blocks moisture and contaminants from reaching metal surfaces that would otherwise corrode. It immobilizes the crimp or weld and the conductor so the joint resists pull, shock, and long-term vibration. It increases insulation distance and helps prevent surface tracking. Just as important, it replaces air pockets with a continuous medium that gives heat a defined path to travel, smoothing out local hotspots. Because the fill and cure are executed in a controlled way, unit-to-unit variation tightens, and overall build consistency improves.

Failure modes without potting

When the joint is left unsealed, moisture and salt can creep toward metal interfaces and accelerate oxidation. Vibration can shift the contact geometry over time, nudging resistance upward and creating local heating. Small voids around the joint behave like thermal insulators, so hotspots form more easily. These mechanisms compound under fast-charge conditions and show up as unstable temperature behavior and shortened service life.

Inside Workersbee’s potting process: overview

Workersbee encapsulates the pin-to-wire joint on CCS1, CCS2, and NACS connectors through a qualified, repeatable workflow. Assemblies that pass the prior quality gate are masked on exterior areas to prevent resin contamination of visible surfaces. A multi-component resin system is prepared to a defined ratio and blended until uniform. Operators verify homogeneity and expected curing behavior with a small test sample before any connector is filled. Filling is carried out in controlled, staged doses rather than a single pour. The feed enters from the rear of the connectors, the resin wets the joint first, and naturally displaces trapped air. The objective is complete coverage with minimal voids while preserving the clearances required for downstream assembly. Curing then proceeds within a qualified window under controlled conditions. Assisted curing is applied when needed to keep the process inside approved limits. Parts move forward only after the resin reaches the specified set state and exterior surfaces are cleaned for later assembly.

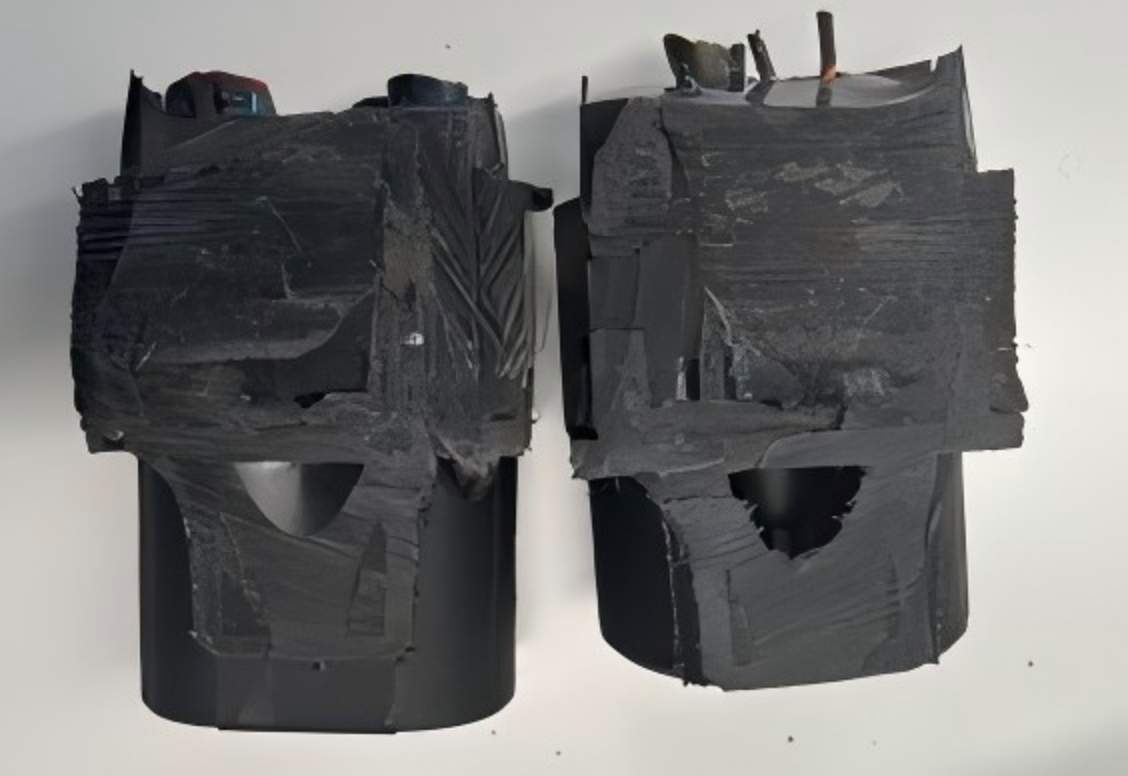

                                                                   potting cross-section

Inside Workersbee’s potting process: in-process quality controls

Workersbee maintains material and process traceability from resin lot to dispense conditions. At defined intervals, additional samples confirm the expected cure behavior. Sample units are sectioned where appropriate or checked thermographically to verify continuous coverage and healthy cure without critical voids. Nonconforming pieces are isolated with clear disposition. Dispense lines and mixing elements are refreshed on a routine schedule to prevent in-line cure or ratio drift, and tooling is maintained so flow and mix accuracy remain stable over a full production run.

Why does temperature rise improve

Air is a poor conductor, and tiny voids act like insulators. By filling those micro-pockets and locking the joint geometry, potting reduces thermal resistance right where it matters and helps contact resistance stay consistent even under vibration. The resin also establishes a repeatable path for heat to spread into the surrounding mass, which reduces localized peaks. In controlled evaluations under comparable conditions, the joint shows a noticeable drop in temperature rise.

Reliability and safety checks that count

A robust process controls the resin mix ratio and records traceability for every batch. The environment for mixing, filling, and curing is managed to avoid drift. Fill quality and cure are verified on samples through sectioning when appropriate or with non-destructive methods such as thermography to ensure there are no critical voids and the thermal behavior matches expectations. Cosmetic and functional acceptance criteria are explicit so nonconforming units can be isolated and disposed of without ambiguity. Dispensing equipment is maintained on a schedule to prevent cure-in-line and ratio errors.

For DC connectors, reliability is won at the joint. Encapsulating that area keeps moisture out, holds the geometry where it should be, and gives heat a predictable path to leave. When those basics are done well, the rest of the system has room to perform.
