Mode 1, 2, 3 and 4 EV Charging Explained: What Each One Is Used For

Most people talk about slow AC charging and fast DC charging. In the standards behind the scenes, the same ideas are described as Mode 1, Mode 2, Mode 3 and Mode 4.

These modes describe how the car is connected to the grid, where the electronics sit, and how the system keeps people and buildings safe. A charging mode is not the plug shape and not the same thing as “Level 1 / Level 2” in North America.

Mode describes the whole charging concept: AC or DC, which device controls current, how the car and station exchange signals, and what protection is in place. Once you know the four modes, it becomes easier to decide when a portable cable is enough, when a wallbox makes sense, and where DC fast charging is worth the investment.





The four charging modes

Mode 1 – Simple cable to a household outlet, no control box, almost no communication. Largely outdated and not recommended for modern EVs.

Mode 2 – Portable cable with a control and protection box in the middle. Uses existing sockets for occasional or backup charging.

Mode 3 – Fixed AC wallbox or AC charging post with full control and protection. Used for regular AC charging at home, at work and in public car parks.

Mode 4 – DC charging where the station houses the power electronics and sends DC through a dedicated connector. Used for fast and ultra-fast charging.





The table below lines up the four modes by supply type, power and typical locations:





Mode 1: a legacy solution

Mode 1 connects the vehicle straight to a standard socket with a basic cable.
There is no control box in the cable and no dedicated electronics watching current or talking to the car.

In this setup the EV pulls power through wiring and outlets that were never built for long high-load sessions. Sockets can overheat, wiring can be stressed, and the user has little warning until something smells hot or fails.

Because of that, many countries restrict or discourage Mode 1 for modern EVs.
You might still see it in old pilot projects or very small, low-power vehicles, but it is not a realistic choice for a new home installation or public site. When people plan infrastructure today, Mode 1 sits in the “history” box.



Mode 2: portable EV chargers

Mode 2 is the portable EV charger many cars ship with. One end plugs into a household or industrial outlet.
Halfway along the cable there is a box that contains control and protection electronics. From there the cable continues to the vehicle inlet.

That box usually does three main things:

Limits the maximum current to what the socket and wiring are rated for

Watches temperature at the plug or inside the box and shuts down if things get too hot

Sends basic signals so the car knows how much current it is allowed to draw



The concept is simple but useful. Drivers can use existing sockets without installing a wallbox. People who rent, move often or park in different locations gain flexibility.

There are real limits:

Power is capped by the outlet rating and by local rules

Older buildings may have wiring that does not like hours of high current

Weak sockets, loose contacts or tired extensions can overheat if used at full load



So Mode 2 is best treated as an occasional or backup tool.
It works well for overnight top-ups when daily mileage is modest, for visiting friends and family, for holiday homes, and for mixed fleets where cars do not always return to the same bay.

Portable chargers built for Mode 2 have to be tough. The box is dropped, kicked and thrown in trunks. Housings need impact resistance and sealing against dust and water. Cables are coiled and uncoiled often, so they need good flexibility in cold and heat. Plugs must manage heat at the rated current even when the outlet is not in perfect condition.

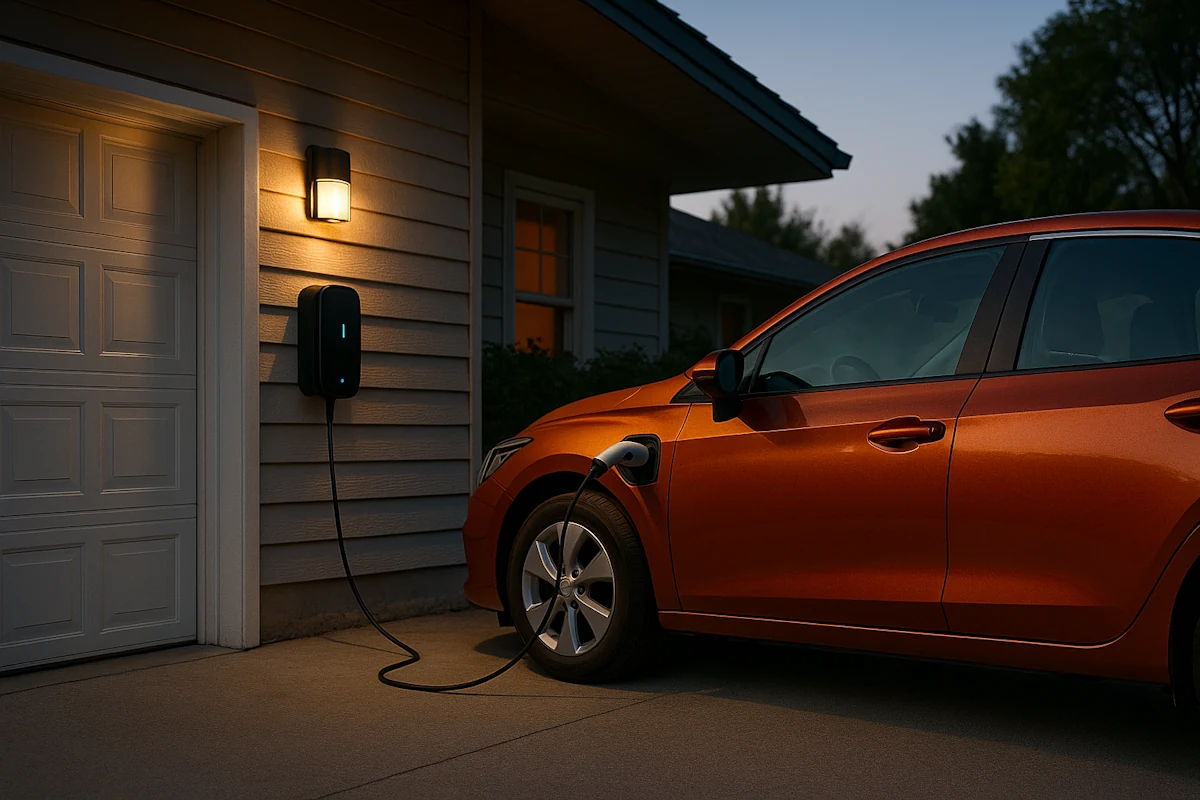

Mode 3: AC wallboxes and AC posts

Mode 3 is the standard way to do regular AC charging.
The EV connects to a dedicated AC wallbox or AC charging post that contains its own control electronics, protection devices and communication with the vehicle.

The charger is fed from a dedicated circuit. In a home this might be a single-phase wallbox at 7 or 11 kW.
In regions with three-phase supplies, workplaces and public car parks often offer up to 22 kW per outlet. Exact numbers depend on the building connection and local codes. The goal is a circuit sized and protected for long-duration EV charging.



For the user, Mode 3 usually means:

A cable that lives on the wallbox or on the post instead of in the trunk

Clear status lights or a screen, sometimes with access control and billing

Less guesswork around whether the wiring can handle the load



On the vehicle side, most light-duty EVs use a Type 1 or Type 2 inlet for AC.
On the station side there are two common layouts:

Tethered units with a fixed cable and plug ready to grab

Socketed units where the driver brings a separate Type 2 cable



Each choice has hardware consequences:

Tethered cables are plugged in and out many times a day and stay outdoors in sun, rain and dust. Jackets, strain relief and the rear of the connector take a lot of mechanical stress.

Socketed posts shift more wear to the user’s cable, which must have the right cross-section, flexibility and pull relief.

Contact geometry, surface treatment and latch strength affect how long the hardware lasts before it becomes loose, noisy or unreliable.



When the components are well designed, Mode 3 looks boring in a good way: plug in, walk away, come back to a charged car and clean connectors. Poor designs show up later as hot plugs, moisture inside housings or broken latches.







Mode 4: DC fast charging

Mode 4 is DC charging with the converter in the station instead of in the car.
The station takes AC from the grid, turns it into DC at a voltage and current that suit the battery, and sends it through a dedicated DC connector.

First-generation DC chargers for cars often delivered around 50 kW.
Newer highway and city hubs now commonly run 150–350 kW on a single stall. Heavy vehicles such as buses and trucks can go higher when vehicles, cables and switchgear are designed for it.

Compared with AC, the hardware sees different stresses:

Currents are much higher than in typical home or workplace charging

Even a small increase in contact resistance can push temperatures up

The connector must lock firmly under load but still be easy to handle all day



Mode 4 uses connector families such as CCS and GB/T DC for light-duty vehicles, and newer high-current interfaces for heavy trucks and buses.

Cooling is a core part of the design. Naturally cooled DC cables can carry substantial power, but at the top end of the fast-charging range many systems use liquid-cooled cables and handles.
Coolant channels run close to the conductors and contact blocks and carry heat away so that the outside of the cable and grip stays at a level people accept. That has to be balanced against weight and stiffness so staff can plug and unplug connectors many times per shift without strain.

Mode 4 fits places where vehicles stop briefly but need to take on a lot of energy: highway sites, city fast-charge hubs, logistics depots and bus depots.





How modes affect connectors and cables

Each charging mode pushes the hardware in a different direction.



Mode 2
Electronics sit inside the cable assembly. The control box housing needs good sealing and impact resistance. Cables are moved and coiled more than in fixed installations, so they need flexible jackets and proper bend protection. Plugs on both ends must cope with heat at full load, because household outlets are not always perfect.



Mode 3
Connectors see high mating cycles and outdoor exposure. Contacts need shapes and coatings that support long life. Cable jackets face UV, rain and snow, plus occasional knocks from wheels or shoes. Strain relief at the back of the connector protects the conductors where bending is concentrated.



Mode 4
High current and demanding duty cycles drive cross-section and contact layout. In liquid-cooled systems, coolant channels and seals share limited space with conductors and signal pins. The handle still has to sit well in the hand, and triggers and buttons must remain easy to use even when the whole assembly is heavier than an AC plug.



Because the stresses and use patterns differ so much, manufacturers usually develop separate product families for Mode 2, Mode 3 and Mode 4 instead of trying to stretch one design across all three.





Choosing modes for homes, sites and fleets

The right mix of modes depends on where the cars are and how they are used.



For private homes, useful questions are:

Is there a fixed parking space close to the electrical panel

How far the car usually drives in a day

How many EVs share the same supply

Whether the wiring is modern and has spare capacity



Some common patterns:

In a rented home with modest daily mileage and limited permission for new wiring, a good Mode 2 portable charger on a checked, modern outlet can be enough to start with.

In a home with a fixed parking bay and higher mileage, a Mode 3 wallbox on a dedicated circuit is usually the more comfortable long-term solution.

Many households keep a Mode 2 unit in the trunk as a backup, even after a wallbox is installed.





For workplaces and public sites, the questions shift to:

What type of site it is: office, retail, hotel, mixed use, depot

How long cars normally stay parked

Whether drivers expect a full charge or just a useful top-up



Typical outcomes:

Offices and destination car parks rely mainly on Mode 3 AC. Cars stay for hours, so moderate power per space works well.

Retail sites often mix a few Mode 4 fast chargers close to the entrance with a row of Mode 3 posts further away.

Highway locations and depots for buses and trucks lean heavily on Mode 4, with a smaller number of AC points for staff cars or long-stay parking.



Seen like this:

Mode 2 fills gaps where fixed infrastructure is limited or still being planned

Mode 3 becomes the backbone of day-to-day AC charging

Mode 4 covers short stops with high energy demand





Q&A on charging modes

What are the four EV charging modes?

They are four concepts from international standards that describe how an EV connects to the grid. Mode 1 is a simple AC cable to a socket with no control box. Mode 2 adds a control and protection box in the cable. Mode 3 uses a dedicated AC charging station. Mode 4 uses a DC charging station with the power electronics in the station.



Do charging modes decide which connector type I need?

Not on their own. Modes describe how the system is built and controlled. Connector types such as Type 2, CCS or GB/T describe the physical shape and pin layout. In practice certain connectors line up with certain modes – Type 2 with Mode 3, CCS with Mode 4 – but the two ideas are separate.



How do charging modes relate to Level 1, Level 2 and Level 3?

Level 1, Level 2 and Level 3 are North American labels for power levels and supply arrangements. Modes 1–4 are global concepts about how the EV and the supply are connected and controlled. A Level 2 charger for home use, for example, will usually operate in Mode 3.



Are charging modes defined the same way in every region?

The basic definitions come from international standards, so Mode 1–4 mean broadly the same around the world. What changes is how local rules allow or limit each mode, especially Mode 1 and higher-power Mode 2 on domestic circuits.



Can one EV use more than one mode?

Yes. Most modern EVs can charge in several modes. The same car might use a Mode 2 portable charger at a relative’s house, a Mode 3 wallbox at home or at work, and Mode 4 DC fast charging on long trips. The vehicle inlet and onboard systems are designed to recognise and work with these different setups.
